Generative Scene 3R

With a series of recent works now accepted, published, and patented, we are pleased to introduce Generative Reconstruction Suite v1.0 and present the complete technical picture behind it. This project builds upon our peer-reviewed papers — listed below and on my homepage — along with partially released code to support reproducibility and practical adoption. The suite has already been deployed within the Alibaba Autonomous Driving Lab to advance both perception systems and end-to-end driving algorithms. We welcome inquiries regarding collaboration or technical details.

Background and Applications of Generative Reconstruction

Generative AI significantly expands the capabilities of data augmentation, closed-loop simulation, and even closed-loop training for autonomous driving systems. Among the various emerging directions, we have validated two particularly promising paradigms:

1. Layout and language guided scene generation;
2. Driving clip conditioned scene expansion.

This project focuses on the second paradigm, which enables faithful reconstruction and controlled expansion of historical driving scenarios. Such capability is especially valuable for auto-regressive model evolution, systematic failure analysis, and long-term performance tracking in industrial autonomous driving systems [1].

Key Procedure 1: Multi-Modal 3D Reconstruction

Given a crowd-sourced driving clip — typically uploaded due to risky behaviors, anomalous events, or previously unseen environments — the off-board data curation pipeline first performs ego-state re-estimation, scene reconstruction, motion clustering, and semi-automatic instance-level annotation. This process enables a precise understanding of what actually occurred during the recorded scenario.

We adopt essentially the same pipeline to construct and release the Para-Lane dataset [2], which provides registered multi-lane scans for benchmarking novel view synthesis methods.

For our specific sensor suite and platform configuration, we further design a dedicated scene representation and reconstruction strategy for LiDAR data, known as LiDAR-GS [5].

Key Procedure 2: Editing the Reconstruction via Context, Database and UI

To support efficient scene management and editing, we explicitly separate high-value dynamic instances from the static background in the reconstructed assets. These instances are designed to be replaceable, and their trajectories and behaviors can be interactively modified through a dedicated user interface.

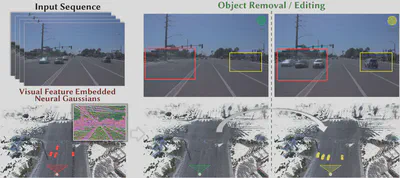

In many scenarios, it is necessary to remove selected foreground instances after UI-based editing, while maintaining spatial and visual coherence in regions that were previously occluded. To address this challenge, we introduce GS-RoadPatching [3], an intermediate inpainting procedure inspired by PatchMatch, but operating directly on 3D Gaussian primitives rather than 2D pixels.

Key Procedure 3: Expanding the Reconstruction via Diffusion

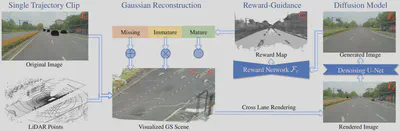

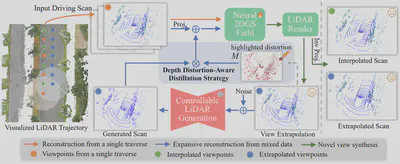

To enable physically consistent free-viewpoint novel view synthesis, we develop specialized expansion techniques for both camera and LiDAR modalities. On the camera side, we introduce RGE-GS [4], while on the LiDAR side, we extend LiDAR-GS [5] to LiDAR-GS++ [6]. Both approaches leverage diffusion priors to expand reconstructed regions while preserving consistency with real sensor observations and underlying scene geometry.

Ongoing Submissions

We currently have several submissions under review that address remaining technical challenges and move toward a more comprehensive Generative Reconstruction Suite. Our ongoing investigations include:

• Accelerating high-fidelity 3D reconstruction, for example through modern feed-forward architectures.
• Improving the efficiency and robustness of blending between mixed foreground and background regions.
• Enabling scalable retrieval of desired 3D instances from a continuously growing instance database, with further refinement and adaptation through prompt-based control.
